Blåt lys til Nokia 3210!!!

Her en beskrivelse på engelsk om hvordan man ændrer det grønne baggrundslys til blåt!!!

Here are the instructions to change the green back lights to blue back lights ! ! !

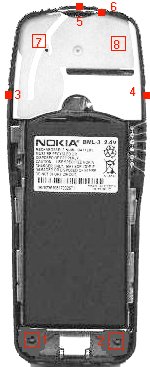

1. FIRST LOOSEN THIS SCREW

2. THEN REMOVE THIS SCREW

3. THEN WITH A SMALL SCREWDRIVER CAREFULLY LEVER UPWARD BETWEEN ANTENNA COVER AND HOUSING

4. THEN DO THE SAME ON THE OTHER SIDE HOWEVER STILL BEING CAREFUL

5. THEN SHIFT THE COVER UPWARDS

6. CAUTION: DO NOT BREAK THE SMALL TAB ON TOP THAT HOLDS IT ALL TOGETHER

7. THEN YOU CAN LOOSEN THIS SCREW UNDER THE COVER

8. AND THEN THE LAST SCREW

  9. AND NOW TAKE THE MOBILE PHONE APART CAREFULLY

10. GOOD LUCK

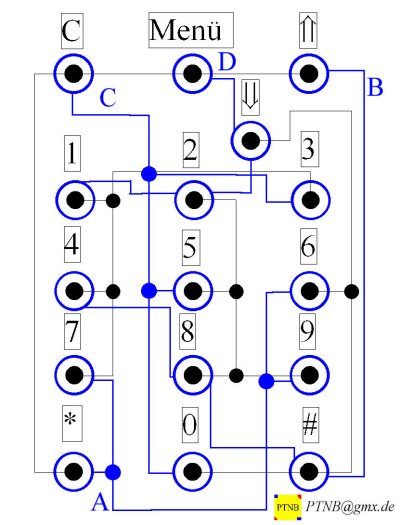

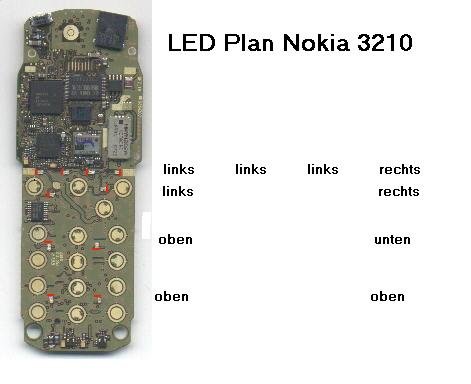

And the most important part follows! You must have a calm hand and much patience (also a soldering iron with a

needle point and a large magnifying glass) and follow the picture below to ensure all LEDs are soldered in the right

direction. Soldering 1 blue LED and testing will not work at all. Only when all 6 of the keyboard LEDs are replaced can

they be tested, then the 4 from the display!

Thanks to Frank for that LED explanetion.

Another LED explanation.
